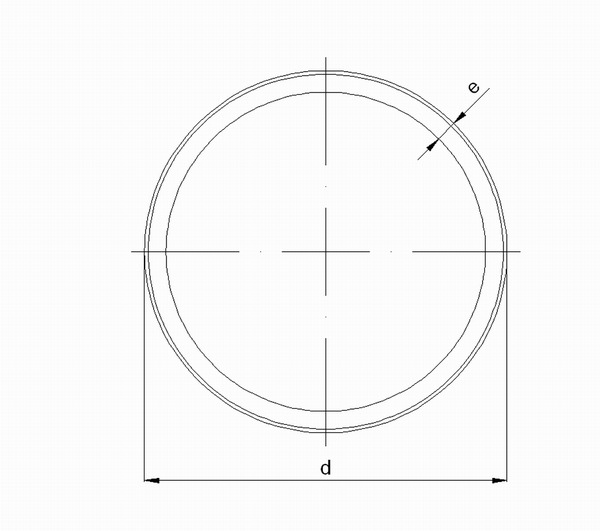

PE 100 RCline Coex Pressure pipe for drinking water Pressure pipe
Order no. 010018959
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Water supply
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black

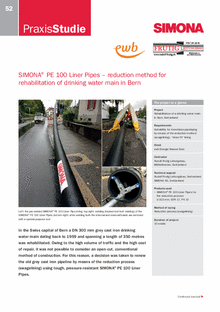

CaseStudy 52 - SIMONA® PE 100 Liner Pipes reduction method for rehabilitation of drinking water main in Bern Brochures
In the Swiss capital of Bern a DN 300 mm grey cast iron drinking water main dating back to 1959 and spanning a length of 350 metres was rehabilitated. Owing to the high volume of traffic and the high cost of repair, it was not possible to consider an open-cut, conventional method of construction. For this reason, a decision was taken to renew the old grey cast iron pipeline by means of the reduction process (swagelining) using tough, pressure-resistant SIMONA® PE 100 Liner Pipes.
PDF | 416.92 KB

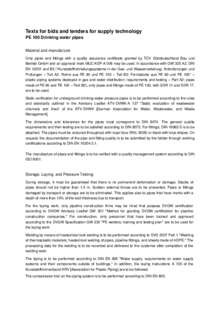

Specification texts for Supply Technology Brochures
Texts for bids and tenders for Supply Technology
PDF | 23.78 KB
ProjectReport 20 - Drinking-water pipeline renewed with SIMONA® SPC RC-Line Protective-Jacket Pipes Brochures
Public utility company Stadtwerke Mainz replaced a 3.7 km-long section of a major drinking-water pipeline with a special emphasis on cost-efficiency and environmental compatibility. The pipeline runs through the districts of Kostheim and Kastel and supplies drinking-water from the Hof Schönau and Petersaue waterworks to localities east of the Rhine. As it runs through the inner city area, there was very little space available for the rehabilitation project.
PDF | 3.67 MB
ProjectReport 13 - Renovation of a drinking water pipe System using SIMONA® SPC protective-jacket pipes Brochures
Due to continuous heavy water loss through old, defective water pipes in the drinking water supply of the Siberian town of Krasnoyarsk, a long-term solution was required for the water pipeline system. Coordinated by B & Q Omni Trade GmbH, Domburg and the planning services of Aufdermauer consultants, Krasnoyarsk officials opted for a modern PE pipeline system of SIMONA® PE 100 protective-jacket pipes.
PDF | 575.35 KB
work.info 01 - Heated element butt-welding Videos
Processing movie Heated element butt-welding acc. to DVS 2207-1
work.info 02 - Heated element socket welding Videos
Processing movie Heated element socket welding acc. to DVS 2207-11.
work.info 03 - Electrofusion welding Videos
Processing movie Electrofusion welding acc. to DVS 2207-1
work.info 4.1 - Heated element butt welding SPC-Pipe Videos
Processing movie Heated element butt welding SPC-Pipe acc. to DVS 2207-1
work.info 4.2 - Electrofusion socket welding SPC-Pipe Videos
Processing movie Electrofusion socket welding SPC-Pipe acc. to DVS 2207-1
work.info 05 - Non contact heated tool butt welding Videos
Processing movie non contact heated tool butt welding acc. to DVS 2207-6
work.info 06 - Simultaneous welding of double-containment Videos
Processing movie Simultaneous welding of double-containment pipe acc. to DVS 2207-1
work.info 07 - Cascade welding of double-containment pipe Videos
Processing movie cascade welding of double-containment pipe acc. to DVS 2207-1.

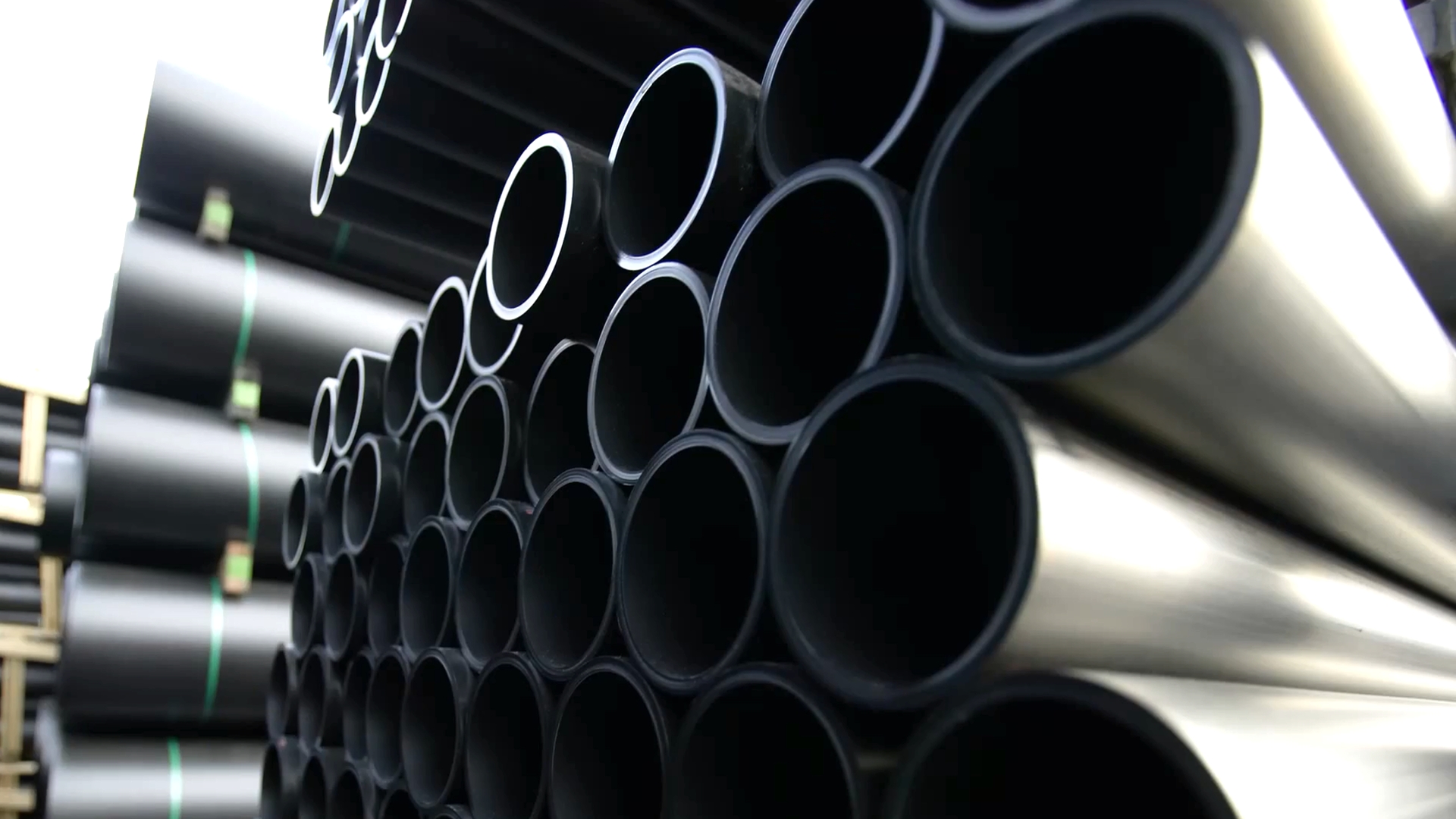

SIMONA® Water Piping Systems Videos

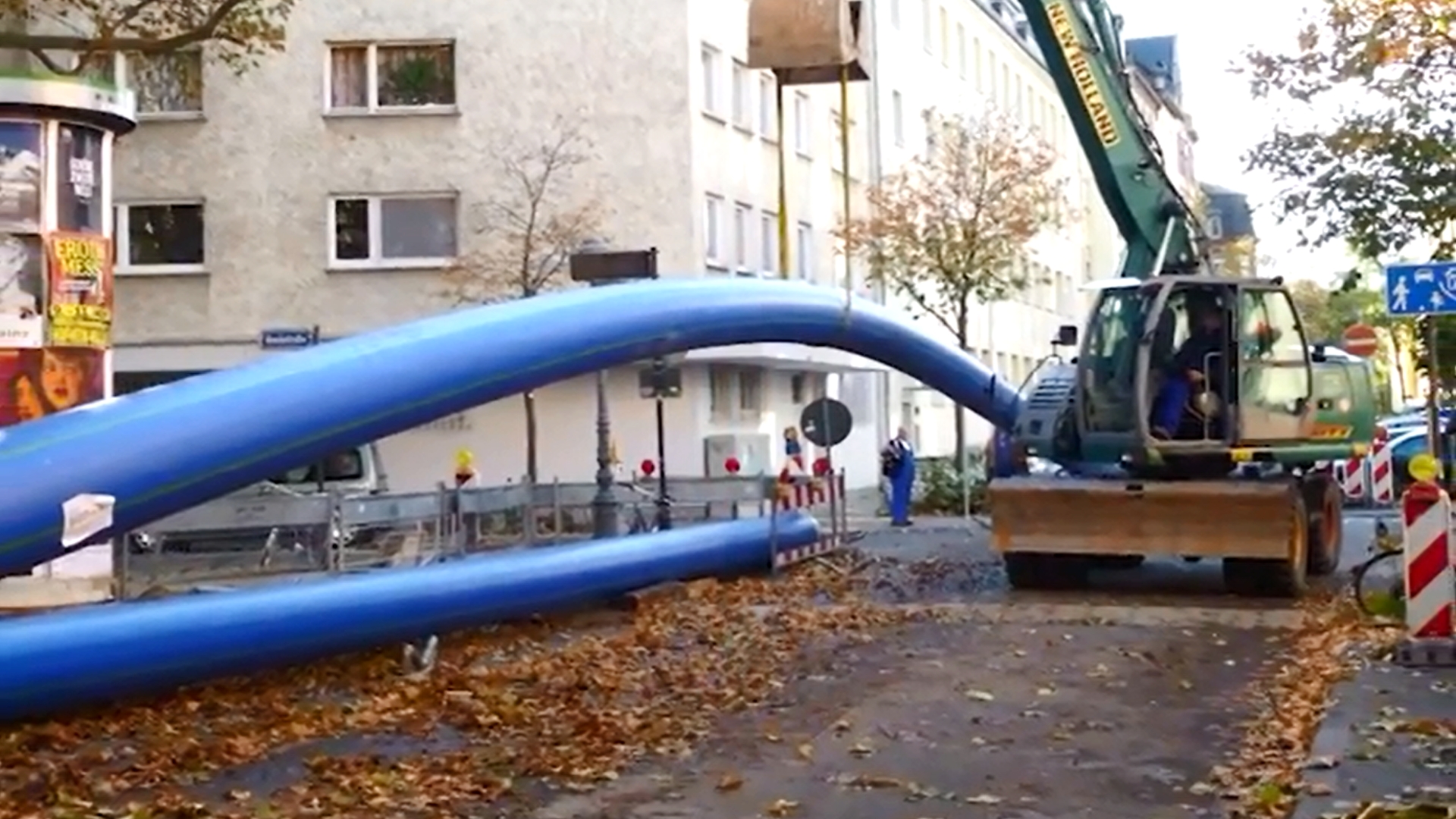

Application example: Drinking Water Transport System Videos
