SIMODUAL2 Tees PP/PE Double-containment pipe fitting - tee
Order no. 010025292
Material internal/external
PP/PE
SDR1/SDR2 internal/external
11/17

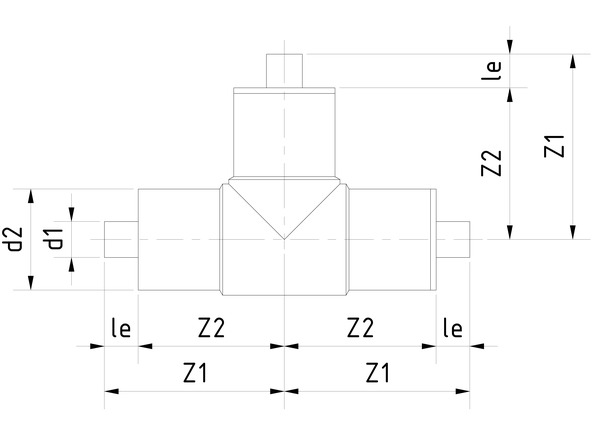

e1 mm
10.0
e2 mm
10.7
z1 mm
310
z2 mm
270
le1 mm
40
Weight kg/piece
9.88
Colour
grey/black
Product no.
010025292
Stock availability
Available on request
Homopolymer, alpha-nucleated, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- Excellent for use in chemical tank and equipment construction
- Alpha-nucleated
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Food production
Approvals/certifications
- Drinking water certification as per KTW and DVGW W270
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PP-H AlphaPlus Data sheet
Homopolymer, alpha-nucleated, permanent-heat stability, grey
SIMODUAL² Product Range Brochures
SIMODUAL² Pipes & Fittings
PDF | 3.56 MB
SIMODUAL² Industrial Double-Containment Piping System - Dual pipes for double the protection Brochures
Double-walled piping systems are recommended for the transport of any hazardous substances. To address this need, SIMONA has developed the SIMODUAL2 Double-Containment Piping System as an innovative, all-inclusive system with integrated anchor points.
PDF | 1.21 MB
SIMODUAL² double containment piping system for industrial applications Videos

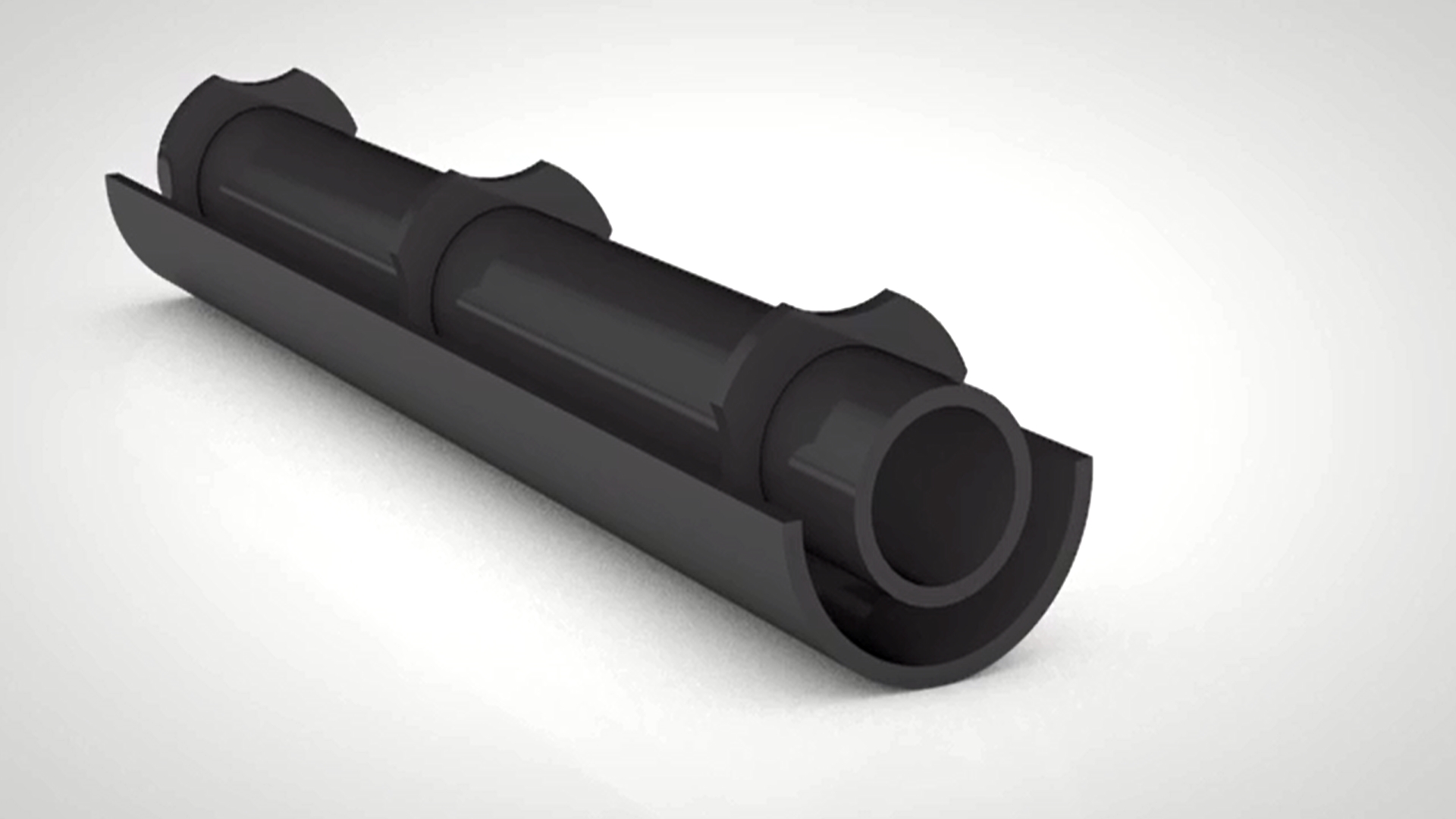

Double-containment pipe
