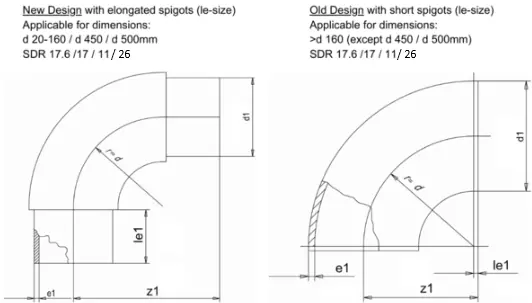

PE 100 RC Bends 90°, injected, With short spigots Bend
Order no. 010026784
Material
PE 100 RC
SDR
17
d mm
450
e mm
26.7
Angle °
90
z1 mm
510
le1 mm
60
Weight kg/piece
42.75
Design
injected
Colour
black
VPE/P.U. Stck./Pcs.
1
Product no.
010026784
Stock availability
Immediately available
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Seawater desalination
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product Information Injection-Moulded Bends d 450/500 mm Brochures
