PVDF Welding Rod
Order no. 010028340
Material
PVDF

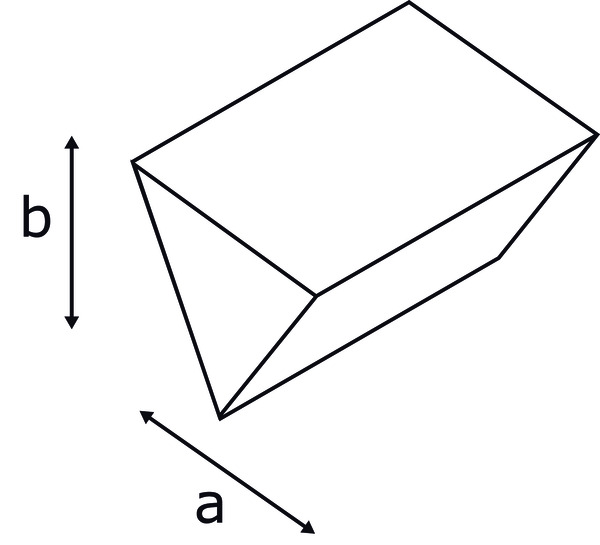

Geometry
Triangular (TA 80)
a mm
5.00
b mm
3.0
Form of delivery
Coil 3.5 kg
Length per kg m/kg
50.0
Colour
natural
Product no.
010028340
Stock availability
Immediately available
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Product properties
- High-performance material
- Low flammability
- Excellent chemical resistance
- Exceptionally good ageing resistance
- High rigidity
Approvals/certifications
- Produced from raw material with USP class VI certification
- Produced from DIBt-approved moulding compound
- DIN 4102 B1 low flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PVDF Data sheet
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Tolerances Welding Rods Brochures
PDF | 115.14 KB
