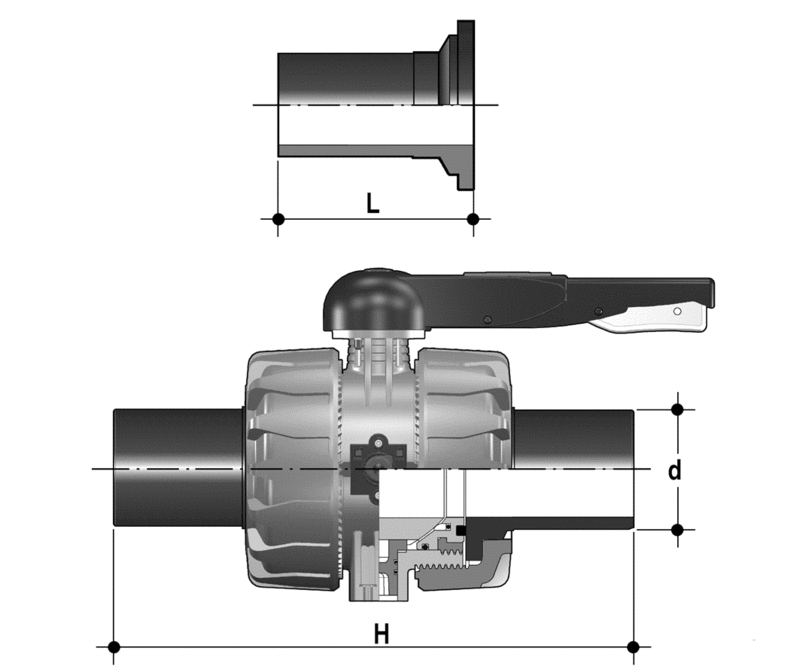

PVDF 2-way ball valves with male IR-/butt fusion ends 2-way ball valve
Order no. 012001036
Material
PVDF
d mm
25
DN mm
20
PN bar
16
Weight kg/piece
0.44
Gasket/seal
FPM
Product no.
012001036
Stock availability
Available on request
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Product properties
- High-performance material
- Low flammability
- Excellent chemical resistance
- Exceptionally good ageing resistance
- High rigidity
Areas of use
- Chemical installations
- Power plant engineering
- Mining
Approvals/certifications
- Produced from raw material with USP class VI certification
- Produced from DIBt-approved moulding compound
- DIN 4102 B1 low flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
